Carbide cutting tools are designed to deliver high precision, longer life, and excellent machining performance. However, even the best carbide tools can fail prematurely if tool runout is not controlled. Many machine shops focus on cutting parameters, coolant, and tool coatings. They often overlook one of the biggest reasons behind poor tool performance: tool runout.
Understanding why tool runout shortens carbide tool life is essential for improving productivity, reducing tooling costs, and maintaining part quality. In this guide, we will explain the causes of tool runout, its impact on carbide tools, and the best ways to prevent it.
What Is Tool Runout?
Tool runout refers to the deviation of a cutting tool from its true rotational axis while spinning. In simple terms, the tool does not rotate perfectly concentric with the spindle centerline.
Even a few microns of runout can create uneven cutting conditions. One flute ends up removing more material than the others. This creates excessive load on a single cutting edge.
The result is faster wear, poor surface finish, vibration, and reduced tool life.
Why Tool Runout Shortens Carbide Tool Life?
The main reason why tool runout shortens carbide tool life is uneven load distribution.
In an ideal setup, every flute shares the cutting load equally. When runout exists, one flute cuts deeper than the others. This overloaded flute experiences higher cutting forces and temperatures.
Carbide is extremely hard. However, it is also more brittle than high-speed steel. Excessive force on one flute can lead to:
- Edge chipping
- Flank wear
- Micro fractures
- Thermal cracking
- Premature tool breakage
This is the primary reason why tool runout shortens carbide tool life in CNC machining operations.
Common Causes of Tool Runout
Several factors contribute to tool runout.
1. Worn Collets
Collets lose clamping accuracy over time. A worn collet cannot hold the tool concentrically.
Using high-quality ER collets helps maintain gripping force and accuracy.
2. Damaged Tool Holders
Tool holders with wear or taper damage can introduce significant runout.
Using precision collet chucks helps improve tool holding performance.
3. Dirty Contact Surfaces
Dust, chips, or debris between the spindle and holder can create misalignment.
Regular cleaning is essential.
4. Spindle Wear
Worn spindle bearings can increase radial movement and affect machining accuracy.
5. Incorrect Tool Clamping
Improper tightening or incorrect collet selection can increase runout levels.
Following proper ER collet selection guidelines helps reduce this problem.
Signs That Tool Runout Is Too High
Many machinists experience runout issues without realizing it.
Common warning signs include:
- Uneven flute wear
- Frequent carbide chipping
- Poor surface finish
- Excessive spindle vibration
- Tool marks on finished parts
- Reduced dimensional accuracy
- Shorter tool life than expected
If these symptoms appear regularly, tool runout should be checked immediately.
How Tool Runout Affects Different Carbide Tools?
Carbide End Mills
Runout causes one flute to remove more material. This increases wear and reduces cutting efficiency.
Carbide Drills
Runout can create oversized holes and poor hole roundness.
Carbide Reamers
Even small amounts of runout can affect tolerance and surface quality.
Thread Mills
Runout may lead to inconsistent thread profiles and dimensional errors.
Impact on Surface Finish and Part Accuracy
Tool runout does not only shorten tool life. It also affects part quality.
When a tool rotates off-center, the cutting edges follow different paths. This creates uneven cutting action.
As a result, manufacturers may experience:
- Chatter marks
- Poor surface finish
- Inconsistent tolerances
- Visible machining lines
- Increased scrap rates
This is why precision machining operations demand minimal runout.
Acceptable Tool Runout Values for Carbide Tools
The acceptable level depends on the application.
| Runout Value | Condition |
|---|---|
| Below 3 Microns | Excellent |
| 3-5 Microns | Good |
| 5-10 Microns | Acceptable for General Work |
| Above 10 Microns | High Risk of Tool Failure |
Lower runout always results in better carbide tool performance.
How to Measure Tool Runout?

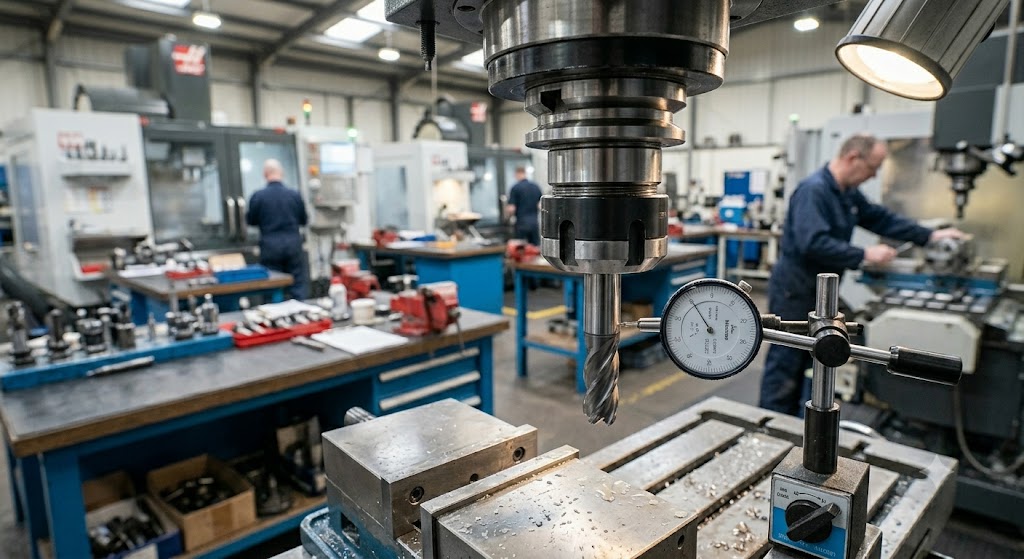

Tool runout can be measured using a dial test indicator.
The measurement should be taken near the cutting edge where machining actually occurs.
For micro tools, laser measurement systems provide higher accuracy.
Regular runout checks help detect problems before they affect production.
How to Reduce Tool Runout?
If you want to improve carbide tool life, follow these best practices.
- Use precision collets.
- Replace worn collets regularly.
- Inspect tool holders frequently.
- Clean spindle tapers before installation.
- Use balanced tool holding systems.
- Minimize tool overhang.
- Verify runout before critical jobs.
Many shops achieve significant improvements simply by upgrading their CNC tool holding systems.
The Real Cost of Tool Runout?
Many manufacturers focus only on tool purchase costs.
The bigger expense is often hidden.
Consider this example:
- Carbide Tool Cost = ₹1,000
- Expected Life = 100 Parts
- Cost Per Part = ₹10
If excessive runout reduces tool life by 50%:
- Actual Life = 50 Parts
- Cost Per Part = ₹20
In large production environments, this difference can result in substantial annual losses.
This clearly demonstrates why tool runout shortens carbide tool life and increases machining costs.
