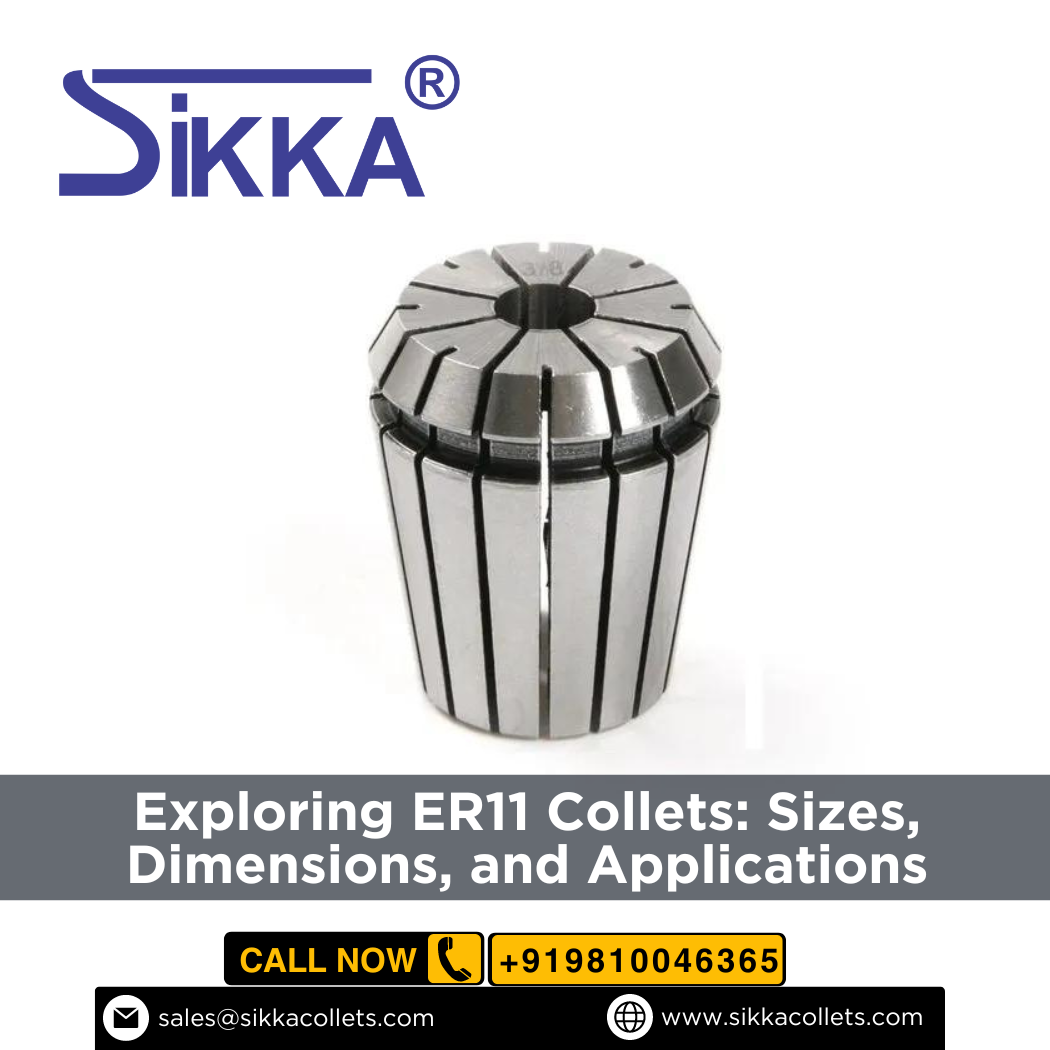

Exploring ER11 Collets: Sizes, Dimensions, and Applications

Are you into precision machining? If so, you’re likely familiar with ER collets, the go-to choice for securely holding tools in various machining applications. Among the ER collets family, ER11 collets stand out for their versatility and efficiency. In this blog post, we delve into the world of ER11 collets, from their sizes and dimensions to their applications and accessories, including insights into Sikka Collets & Accessories, a renowned manufacturer in the industry.

 Understanding ER11 Collets

ER11 collets are part of the ER collet system, a standardized series of collets used for holding cutting tools in milling, drilling, and other machining processes. These collets feature a unique design that allows them to expand uniformly when tightened, providing a solid grip on the tool shank. This ensures precise concentricity and repeatability, which are essential for achieving high-quality machining results.

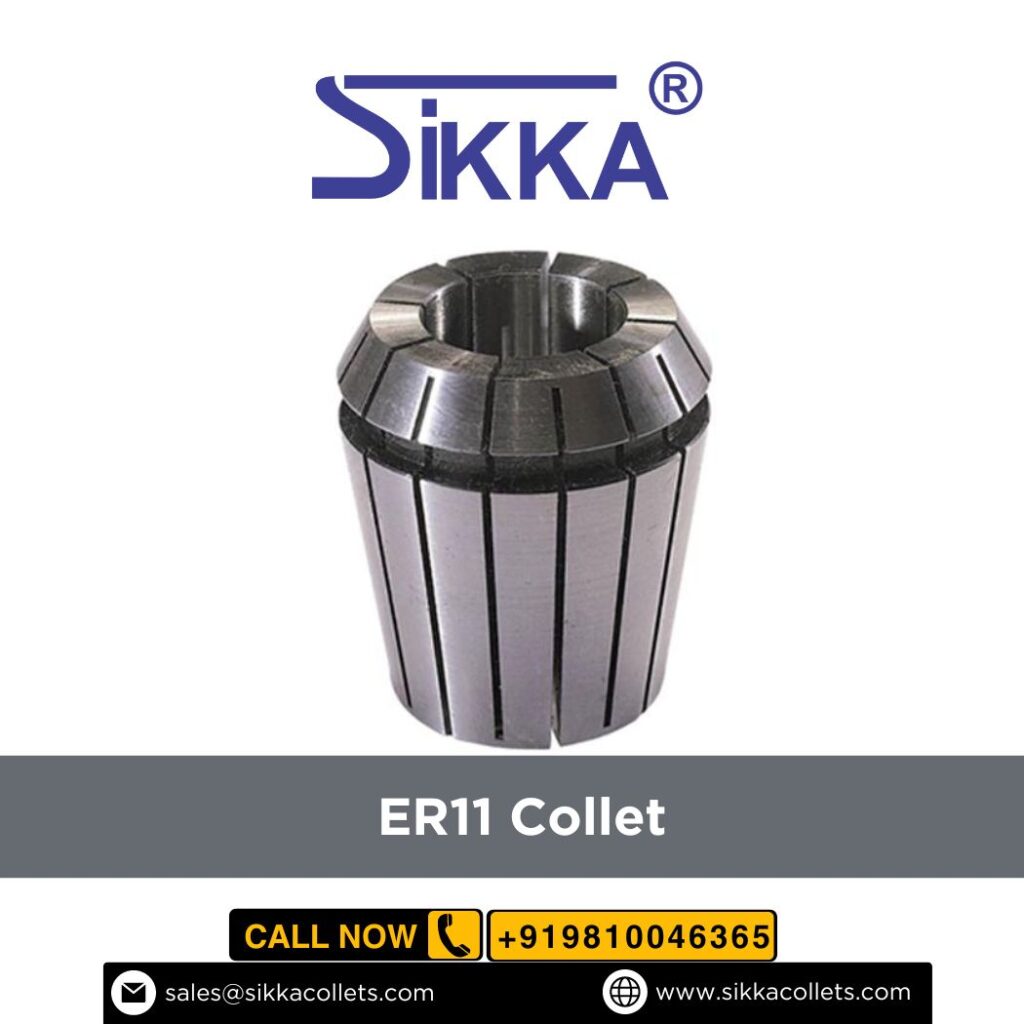

ER11 Collets
ER11 Collets

 ER11 Collet Chuck Holder

To utilize ER11 collets effectively, a compatible collet chuck holder is required. The collet chuck holder is the interface between the collet and the machine spindle, securely holding the collet in place while allowing for easy tool changes. When selecting a collet chuck holder, ensuring compatibility with the ER11 collet size and dimensions is crucial to guarantee optimal performance.

 ER11 Collet Sizes and Dimensions

ER11 collets come in various sizes to accommodate different tool shank diameters. The most common sizes range from 1 mm to 7 mm, with incremental increases of 0.5 mm. The dimensions of an ER11 collet typically include the overall length, outside diameter, and gripping range, ensuring compatibility with a wide range of tool sizes.

 Maximum Size of ER11 Collet

The maximum size that an ER11 collet can accommodate depends on its specific design and manufacturer specifications. However, ER11 collets are generally suitable for holding tool shanks up to 7 mm in diameter. Other collet types within the ER collet system may be ideal for larger tool sizes, such as ER16 or ER32 collets.

 ER11 Collet Holder Dimensions

Collet holders for ER11 collets are designed to precise specifications to ensure proper fit and performance. The dimensions of an ER11 collet holder typically include the shank diameter, projection length, and overall length, among others. These dimensions may vary depending on the specific application and machine requirements.

 ER11 Collet Nut

The collet nut is an essential component of the collet chuck assembly. It is responsible for securely clamping the collet around the tool shank. ER11 collet nuts are designed to distribute uniform pressure to ensure a reliable grip without damaging the tool or collet. These nuts are available in various designs to accommodate different machining needs.

 Sikka Collets & Accessories: A Trusted Manufacturer

Regarding quality collets and accessories, Sikka Collets & Accessories stands out as a trusted Collets manufacturer in the industry. With a commitment to precision engineering and superior quality control, Sikka offers a comprehensive range of ER collets, including ER11 collets, and compatible accessories such as collet chuck holders and nuts.

In conclusion, ER11 collets are indispensable for precision machining, offering versatility, reliability, and accuracy. Understanding their sizes, dimensions, and compatible accessories is essential for maximizing their performance in various machining applications. With trusted manufacturers like Sikka Collets & Accessories leading the way, machinists can rely on quality collets and accessories to achieve exceptional results.
